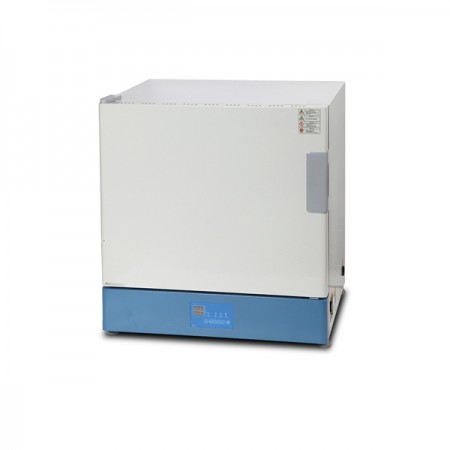

INCUBATOR
Forced convection system reduces temperature difference of the chamber.
Very suitable for every kind of experiments for microbiology, cell cultivation of animals and plants and food.
With the solid double door including the inner tempered safety glass of its thickness 5mm, it enables you to easily monitor the inside of the chamber without any variation at temperature.
The excellent quality of magnetic gum packing for external door.
User-oriented design of shelves make you adjust each space of shelves wihtout difficulty.
Round cornered chamber to protect contamination and easy to clean.
Technical Data
|
Model |
IIN Series 06 |
|
|
Type |
Forced Convection Type |
|
|
Temp |
Range |
Amb ±5℃ to 60℃ |
|
Accuracy |
±1℃ |
|
|
Controller |
Digital PID Controller |
|
|
Ragulator |
SSR controller |
|
|
Thermocouple |
Pt-100AΩ |
|
|
Timer |
Range |
99 hr 59 min |
|
Controller |
Digital Display |
|
|
Materials |
Interior Construction |
Stainless Steel plate |
|
Exterior Construction |
Steel Plate with Powder coating |
|
|
Insulation |
Glass wool |
|
|
Door packing |
Double door. Magnetic Gum packing. |
|
|
Inner Door |
High temperature safety glass of thickness 5mm |
|
|
Shelves |
ABS coating(Adjustable Type) |
|
|
Safety Device |
Over Temperature Limit / Over Current Glass Fuse |
|
|
Supply Voltage & Frequency |
AC 230V, 50/60Hz |
|
Specification
|
code |
IN 06 27 |
IN 06 91 |
IN 06 150 |
|
Capacity |
27 L |
91 L |
150 L |
|
Internal Dimension |
300 x 300 x 300mm |
450 x 450 x 450mm |
500 x 500 x 600mm |
|
External Dimension |
460 x 590 x 610mm |
610 x 740 x 760mm |
660 x 790 x 910mm |
|
Heater Capacity |
300 Watts |
500 Watts |
600 Watts |
|
Shelves |
2ea |
2ea |
3ea |
|
Model |
IN 06 91 02 |
IN 06 91 04 |
|
Capacity |
91 Lx 2ea |
91 Lx 4ea |
|
Internal Dimension |
(450 x 450 x 450mm)x2ea |
(450 x 450 x 450mm)x4ea |
|
External Dimension |
610 x 740 x 1290mm |
1220 x 740 x 1290mm |
|
Heater Capacity |
500 Watts x 2ea |
500 Watts x 4ea |
|
Shelves |
4ea |
8ea |
