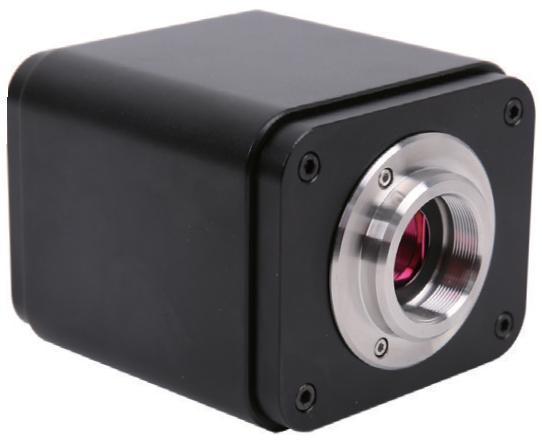

Camera Series HDMI 8MP 4K

The  4K series HDMI Camera is intended for acquisition of digital images from stereo microscopes, biological microscopes, or online interactive teaching.

The basic characteristic is listed as below:

• Sony STARVIS 2 back-illuminated CMOS sensor
• 4K HDMI/ NETWORK/ USB multiple video synchronous outputs
• 4K/1080P auto switching according to monitor resolution
• High frame rate output, supporting up to 4K 75fps
• Support 4K 60fps low delay HDMI output mode, with an average delay of 40ms
• SD card/USB flash drivefor captured image and video storage, support local preview and playback
• ToupView/ToupLite softwarefor PC

• New browsing function, providing rich file operation functions, image to image comparison, image to real-time video comparison, EDF and other functions
• Excellent ISP with local tone mapping and 3D denoising
• Provide two sets of default ISP parameters for biological microscope and stereo microscope
• Embedded XCamView for the control of the Camera and image processing, supporting automatic edge finding and measurement functions
• iOS/Android applications for smart phones or tablets
