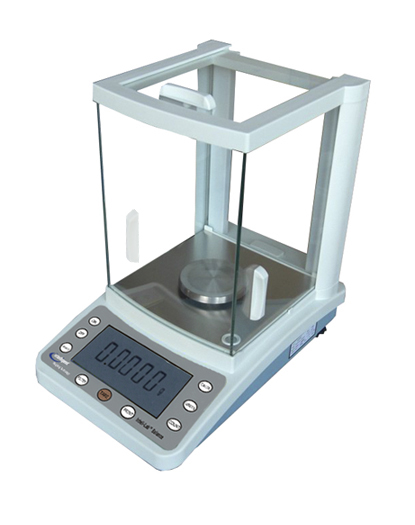

ntelligent Balance Model PA-200 USA

Calibration : External calibration – Weight Included

Capacity : 200 g / 500 ct / 3.6 oz / 3.3 oz t

Readability : 0.0001 g / 0.001 ct / 0.00001 oz / 0.00001 oz t

Repeatability (Std. Dev.) : ± 0.0002 g

Linearity : ±.0.0003 g

Stabilization Time : ≤6 seconds

Weighing Units : g, ct, oz, oz t

Functions : Counting

Tare Range : To capacity by subtraction

Power Source : 120 VAC, 12 VDC, 60 Hz, 500 mA

Construction : Die cast aluminum base, analytical type 3 door glass draft shield

Display : Huge, easy to read LCD display with backlight

Pan Size : 3.2 inches / 80 mm diameter

Draft Shield Internal Dimensions (WxDxH) : 6.75 x 6.75 x 8.75 inches / 165 x 165 x 210 mm

Overall Dimensions (WxDxH) : 8.5 x 13.5 x 13.5 inches / 216 x 343 x 343 mm

Operating Environment : 41 °F to 95 °F / 5 °C to 35 °C Temperature fluctuation ≤2 °C / hour Humidity 50% to 85% RH

Connectivity : RS 232 interface, selectable transmission modes

Net Weight : 14.2 lb / 6.5 kg

Shipping Weight : 21 lb / 9.5 kg

Options : Printers, RD-1000 Remote Display (must be factory fitted)

External Calibration
