DIGITAL CAMERA HDMI MULTI
Description

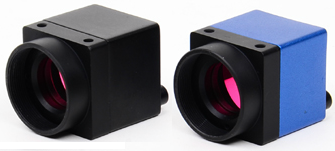

The Smallest, but most powerful New Digital Camera in 2012! MCHD1 HDMI Multi-Mode microscope camera, size only 4x4x4.5cm, is a 1080p/720p HD scientific grade image processing project that has ultra superior color reproduction and super fast frame speed. Its functions can be independent utilized.
MCHD1 can be operated on HDMI screen independently or process image via USB2.0 without connecting with PC. The fast change responding speed and short responding time of the optical signal adopted by MCHD1 has been used in many areas like optical image processing fields.
Specifcation
|
Model |
2012 |
|
Image Senser |
CMOS, Color, Progressive scan |
|
Optical Format |
1/2.5-inch(4:3) |
|
Active Image Siza |
5.70mm(H)x4.28m(V) |
|
Active Pixels |
2592Hx1944V |
|
Pixel Size |
2..2x2.2μm |
|
Shutter Type |
Global reset release(GRR), snapshot only, electronic rolling shuttrt(ERS) |
|
Color Filter Array |
RGB bayer pattern |
|
ADC Resolution |
12-bit |
|
SNRMAZ |
38.1db |
|
Pixel Dynamic Range |
70.1db |
|
Operating Temperature |
-30°C to +50°C |
|
Photo Resolution |
2592x1944/1920x1080/1280x720. Selectable resolutions for capturing images |
|
Video Size |
720P/30fps |
|
Exposure Setting |
Automatic/manual |
|
White Balance Setting |
Automatic/manual/Preset:3 modes for the color temperature of light scource, one-press button control AWB |
|
Dta Interface |
HDMI/USB2.0/Mini SD 4G included |
|
Control Interface |
Plastic button control |
|
Lens Mount |
Adjuctable C-mount standard |
|
Operating Systems |
Windows XP/Vista/ Win7(32 and 64-bit) under USB2.0 mode |
|
Measuring Software |
VMS3.5, Multi languages |
|
Power Supply |
5V DC/2A |
|
