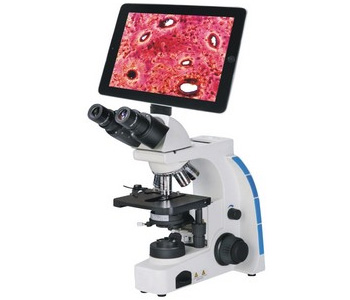

MB520LCD Microscope with 9.7 inch Android Pad

Description

 This LCD digital microscope is a bland new system that has an embedded system. With a 9.7” TFT screen, Android system, friendly man-machine interface, powerful processing function (real-time preview, dynamic calibrating and measuring), multiple peripheral interfaces, and comfortable mechanical design; it become a new generation microscope and easy to operate. So it is your good assistant in teaching, research and electronic checking!
· Sharp. Crisp. Brilliant. Revolutionary Product for digital Microscopy.
· Seamless integration of a 5 megapixel camera with a 9.7″ tablet PC and powered by an Android 2.3 OS, the MicPad 5000 allows users to view live video in stunning 720P resolution, capture images, meausre and analyze the specimen, and share documents with co-workers. It is widely used in microscopy of Brightfield, Pathology, Cytology, Microbiology, Defect Analysis, Metallurgy, Inspection.
Features:
1, 5 megapixel color camera
2, 9.7″ HD LED backlit touch screen
3, VMS6 Image Analysis Software
4, 720P live video preview
5, Android 2.3 OS, 1.2 GHz ARM Cortex® A8 Core Processor
6, 8 GB Memory
7, Micro SD card slot
8, Supports external mouse or flash drive via USB
9, 3 hour battery life
10,WI-FI & Bluetooth ready
Specification of microscope:
· UCIS Infinity Independent Achromatic Optical System
· WF10x plan eyepieces, 20mm field of view, high eye point up to 21mm
· Seidentopf binocular viewing head, inclined 30º, rotatable 360º
· 52-75mm interpupillary distance settings
· ±5 Diopter adjustment
Quadruple nosepiece inward facing with positive click stops
Infinity Plan Achromatic 4x, 10x, 40x(S) and 100x (S/Oil) objectives
Right hand controls, low position, mechanical stage, 156mm x 138mm, movement range 76mm x 54mm
· N.A. 1.25 Abbe condenser with iris diaphragm, with phase-contrast/dark-field socket
· Coaxial coarse and fine focus mechanism with markings. Fine focus sensitivity 0.001mm
· 0.5X C-Mount
· 3W LED bulb, 110-240V wide voltage
· Dust cover, clear blue filter, power cord, immersion oil

LCD-B2 LCD digital biological microscope for student

Description

LCD Digital Microscope (LDM) Model：LCD-B2 Introduction With a 3.5” monitor, LCD-B2 LCD Digital Microscope (LDM) is a precision optical instrument, made of the highest quality materials to ensure durability and long life. It is designed to give you a lifetime of pleasure with a minimal amount of maintenance. This microscope provides high powers from 40x up to 400x (up to 1600x with digital zoom). The LCD Digital Microscope LCD-B2 does not use eyepieces that are used in traditional microscopes. You will view specimens or objects on the LCD screen which are easy to see and you can enjoy them with others also. You can also take snapshots or short videos with the built-in digital camera.

14. LCD Monitor

13. LCD Module

6. Focus Knob

10. Mechanical Stage

9. Bottom Illuminator

8. Illuminator Switch

7. Base

1. SD Card Receptacle

2. Mini USB Cable Receptacle

3. Arm

5. Stage Control Knobs

4. Top Illuminator

12. Objective Nosepiece

11. Objective Lens


Features
1. The LCD digital microscope LCD-B2 can be independently used without PC;
2.With 2.0 Mega Pixel CMOS image sensor, the output images have high Signal to Noise Ratio;
3. Compact and flexible, ideally suited for desktop, laboratory worktable, factory operation line;
4. Rich light source, provide top light, bottom light illumination;
5. With LCD Monitor, you can share the images with other people at the same time;
6. Images and short videos can be stored in the built-in Flash Memory. Flash Merry can be expanded to utmost 4G with the SD card.

Specifications

Model：LCD-B2

Stage: Mechanical Stage 3.5” x 3.5” (88mm x 88mm)

Digital Camera: 2MP CMOS; 10x Magnification in lieu of an Eyepiece; 1600x 1200 pixel array

LCD Monitor: 3.5” with 4x Digital Zoom – High definition digital TFT display 320x240 pixels

Focuser: Smooth, single motion

Objectives: Achromatic 4x, 10x and 40x

Flash Memory: 512MB

USB Cable: 1.1 Mini

Filter Wheel: Clear/Red/Yellow/Dark Green/Light Green/Blue

Nosepiece: Triple with click stop

Illuminators: Built-in electric – both are LED 6Volt and 6Watt

Condenser: N.A. 0.65

AC Adapter: Input Universal 100 to 240Volt 50/60HZ

Gross Weight /Dimensions: 3.5kg 390mm x 225mm x 190mm

  Magnification (Power) Table Use the following table to determine the magnification of the different objective lenses in combination with your microscope using the normal mode of the digital image on the LCD screen and using the digital zoom feature.

Objective Lens :4x / 10x / 40x

Digital Image – normal: 40x / 100x / 400x

Maximum with 4x digital zoom feature: 160x / 400x / 1600x
